Repair Steam Iron Philips G7030
jean at huens dot be 20130915
Problem:
Steam-hotwater conduct was leaking.
Since a spare steam conduit was difficult to find I did reduce the length of the steam tube.
Tools
All screws are Torx TX-20 with tamper proof protection. You need the
correct screwdriver (Looks like torx but with hole in the center.
Pictures

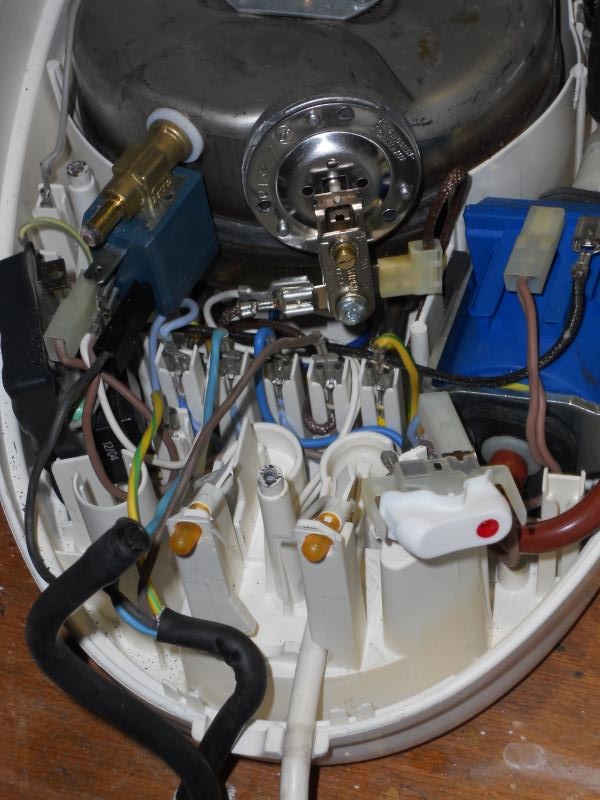

Inside Steam Body
Iron
Iron
Iron

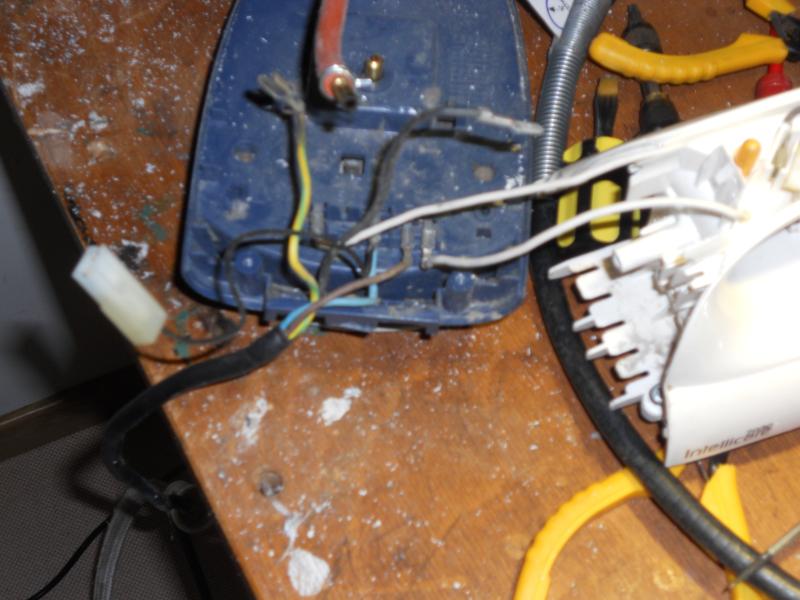

Steam conduit disconnected
iron 1

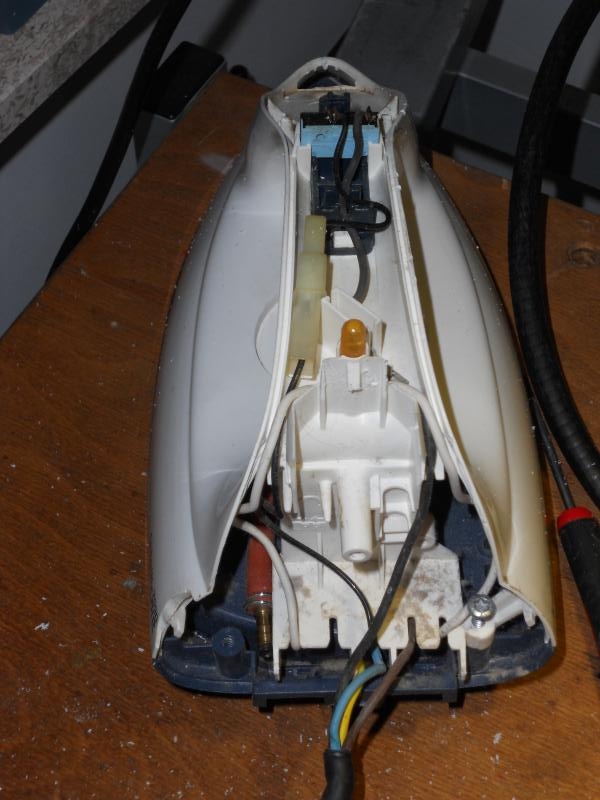

THe lid on top of the iron is held by two clips in the handle. Push on both sides of the plastic while lifting up to remove.

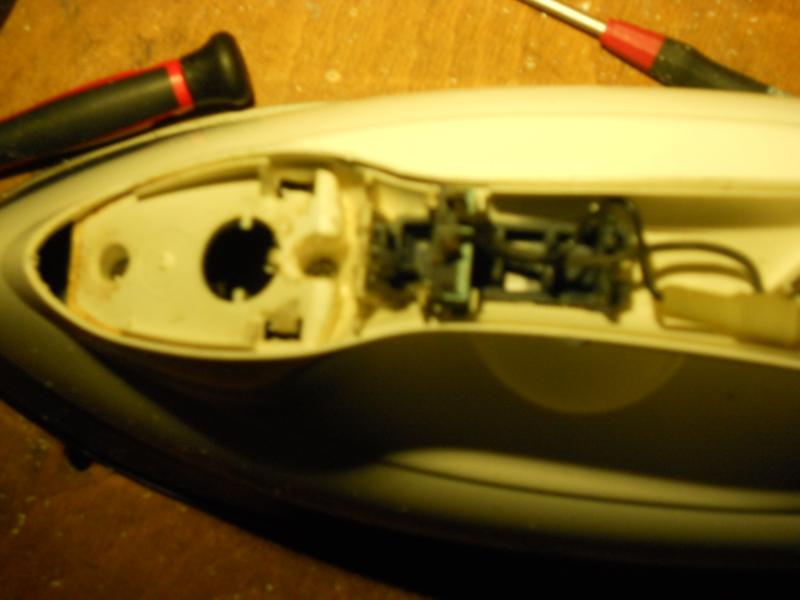

clips to hold cover

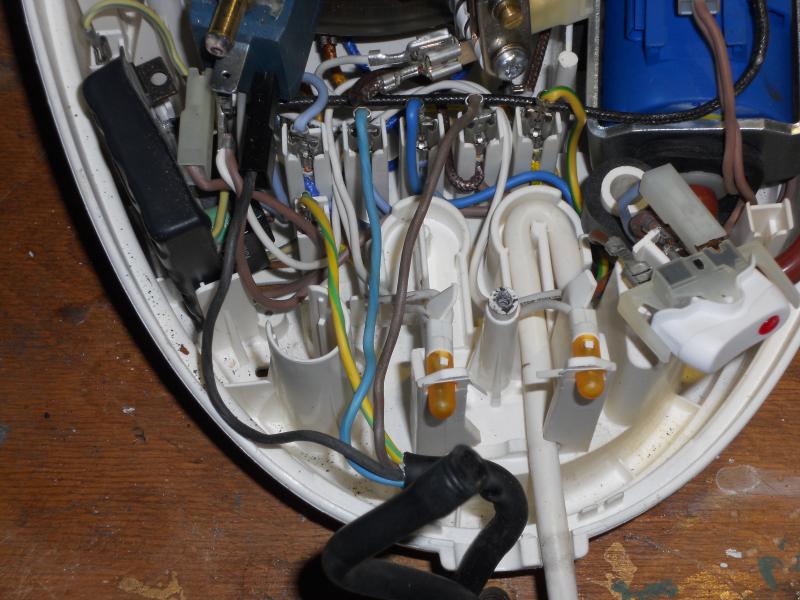

iron wiring

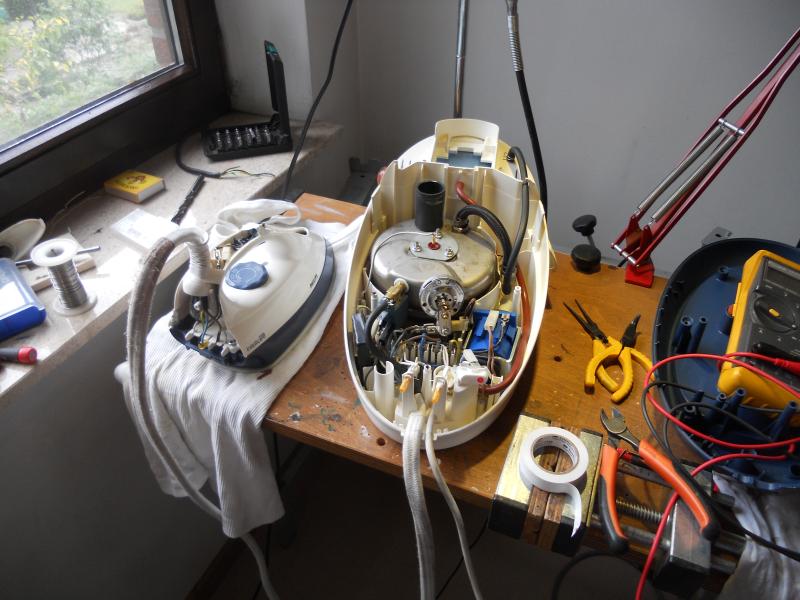

Test setup
test setup

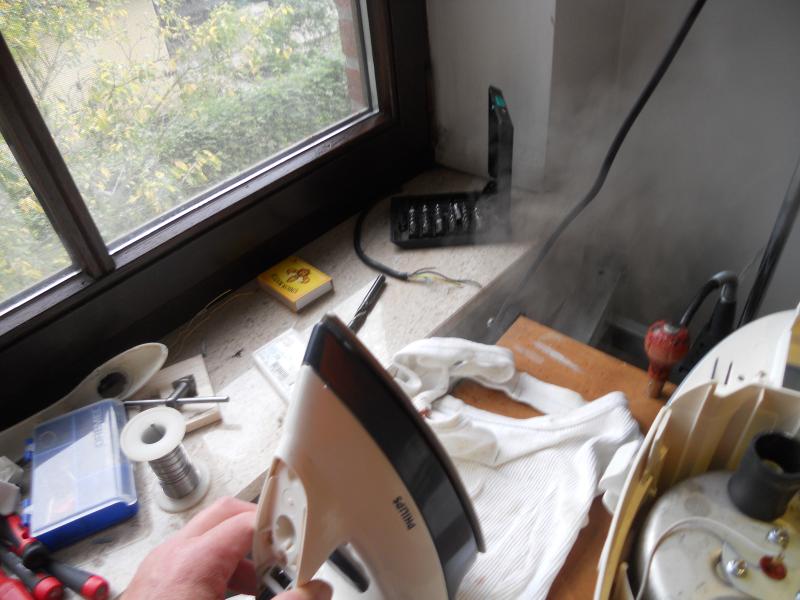

Steam !
steam !!
